Powerlase Photonics Ltd.

An Innovative, High Power (Kilowatt’s) DPSS lasers

Developed for industrial applications primarily for use in the materials processing and microelectrics markets for flat panel displays, microelectronics, automative and aerospace sectors.

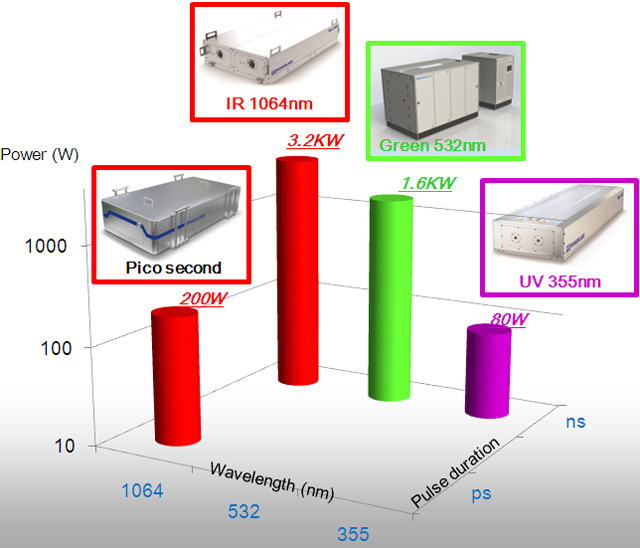

High power pulsed laser product line

High power pulsed laser product line Polaris i200 Rigel i3200 Procyon g1600 Rigel u80


Infra-Red (1064nm) Lasers

Rigel i Series

The Rigel 1064nm Series is a family of Q-switched DPSS Lasers delivering high average powers up to 3.2 kW unpolarised light at a wavelength of 1064nm. With a well proven rugged head design, state of the art control and power
supply architecture, simple synchronisation with OEM equipment and process lines makes this platform ideally suited to high volume industrial applications. The Powerlase Rigel series ranks from 200 W all the way to 3.2 kW and accordingly delivers pulse energies ranging from 30 mJ to 240 mJ in the largest system which can be doubled up for a combined pulse coming from two cavities. The acousto-optically Q-switches, diode pumped Nd:YAG laser systems are all designed for high volume 24/7 manufacturing environments.

Rigel i Series

Polaris Series

The POLARIS i200 laser delivers 10ps output pulses at the wide range of repetition rates of up to 1MHz with average output power levels of up to 200W at the fundamental wavelength of 1064nm. High output beam quality with an M2 < 1.5 accomplished by programmable burst mode of operation enables to increase the throughput of industrial processing for a large variety of materials.

Polaris Series

>> PDF Download
Please contact to OPTOPIA

NaosV-i Series

The Naos V-i10 and i20 Series is a product family of diode-pumped, solid state (DPSS) nanosecond lasers emitting at a wavelength of 1064nm, other versions at 532nm and 355nm are available. The Naos platform is an innovative, excellent beam quality (M2 close to 1) DPSS pulse nanosecond laser platform with short pulse (<20ns), high peak powers and repetition rates up to 100kHz.

NaosV-i Series

>> PDF Download
Naos V-i10 7W
Naos V-i20 12W

Naos F-i Series

The Naos F Series are is product family of pulsed, diode-pumped, Yb doped fiber nanosecond lasers emitting at a wavelength of 1064nm. The Naos F Series are a compact, reliable Yb fiber laser with high power (20W), excellent beam quality (M2 < 1.3), high energy and peak power.

Naos F-i Series

>> PDF Download
Naos F-i20Q/M 20W

Green (532nm) Lasers

Rigel g Series

The Rigel 532nm Series is a family of Q-switched frequency doubled DPSS lasers delivering average powers of up to 400 Watts at a wavelength of 532nm. With a well proven rugged head design, state of the art control and power supply architecture, simple synchronisation with OEM equipment and process lines makes this platform ideally suited to high volume industrial applications.

Rigel g Series

Procyon g Series

Procyon is a scalable high power laser platform consisting of multiple, synchronised laser modules optimised for stability and reliability. The Procyon g1600 system incorporates eight 200 W green lasers with a centralised control interface for simple operation and easy integration. Modular design and long-life pump diodes ensure high uptime and dependable operation in a 24/7 production environment.

Procyon g Series

Procyon g Series

>> PDF Download
Please contact to OPTOPIA

NaosV-g Series

The Naos V-g4 & g7 Series are a product family of diode-pumped, solid state (DPSS) nanosecond lasers emitting at a wavelength of 532nm, other versions at 1064nm and 355nm are available. The Naos platform is an innovative, excellent beam quality (M2 close to 1) DPSS pulse nanosecond laser platform with short pulse (<25ns), high peak powers and repetition rates up to 100kHz.

NaosV-g Series

>> PDF Download
Naos V-g4 4W
Naos V-g7 7W

UV 355nm Lasers

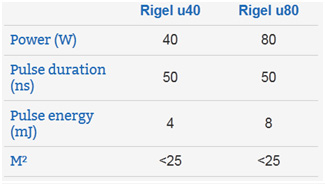

Rigel u Series

The Rigel 355nm Series is a family of Q-switched frequency tripled DPSS lasers delivering average powers of up to 80 Watts at a wavelength of 355nm.
With a well proven rugged head design, state of the art control and power supply architecture, simple synchronisation with OEM equipment and process lines makes this platform ideally suited to high volume industrial applications.

Rigel u Series

Rigel u Series

>> PDF Download
Rigel u40 40W
Rigel u80 80W

NaosV-u Series

The Naos V-u2 & u5 Series are a product family of diode-pumped, solid state (DPSS) nanosecond lasers emitting at a wavelength of 355nm, other versions at 1064nm and 532nm are available. The Naos platform is an innovative, excellent beam quality (M2 close to 1) DPSS pulse nanosecond laser platform with short pulse (< 20ns), high peak powers and repetition rates up to 100kHz.

NaosV-u Series

>> PDF Download
Naos V-u2 2W
Naos V-u5 5W
