Optics products
Optics for Laser system
Optopia handles various lenses, various mirrors and various prisms
for laser systems with high precision.
We mainly handle high quality cylindrical lenses that require
advanced technology, and high-precision lens for laser systems.
Flat optics

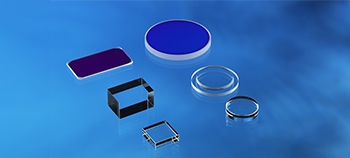

Plano-Parallel Plates
Dimension Rectangular: length 0.5mm - 600mm Round: diameter 0.5mm - 600mm
Thickness 0.1mm - 50mm
Tolerances Planarity: up to λ/10 Parallelism: up to 1″ *depending on dimensional details or
Please contact us for your desired processing content and quantity.

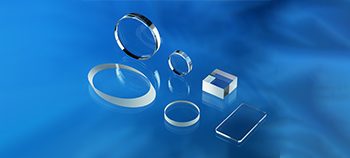

Etalons
Dimension Rectangular: length 0.5mm - 100mm Round: diameter 0.5mm - 100mm
Thickness 0.1mm - 50mm
Tolerances Planarity: up to λ/10 Parallelism: up to 1″ *depending on dimensional details or
Please contact us for your desired processing content and quantity.

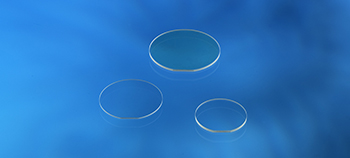

Retarder Plates λ/4, λ/2
Dimension dia.10mm, dia.20mm, dia.30mm, other diameters on request
Thickness 0.1mm – 1.0mm
Tolerances Tolerance on delay: λ/500 Wavefront deformation: λ/10
Please contact us for your desired processing content and quantity.

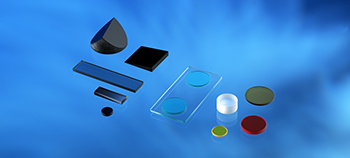

Color Filters
Dimension Rectangular: length 0.5mm - 150mm Round: diameter 0.5mm - 150mm
Thickness 0.1mm - 4mm
Tolerances Outer dimensions: ± 0.1mm Thickness: up to ± 0.005 mm
Please contact us for your desired processing content and quantity.
Beamsplitters
Dimension ----
Thickness ----
Tolerances ----
Please contact us for your desired processing content and quantity.

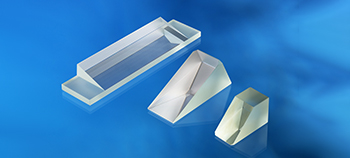

Wedge Plates
Dimension Rectangular: length 0.5mm - 250mm Round: diameter 0.5mm - 350mm
Thickness 0.5mm -
Tolerances Planarity: up to λ/10 Wedge angle: up to 1” * *depending on size or
Please contact us for your desired processing content and quantity.

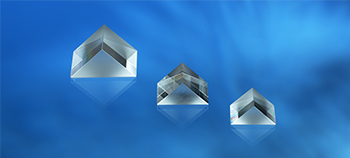

90° Prisms
Dimension Side length: 5 mm – 50 mm Height: 5 mm – 150 mm
Thickness 0.5mm -
Tolerances Planarity: up to λ/10 Wedge angle: up to 1” * *depending on size or
Please contact us for your desired processing content and quantity.

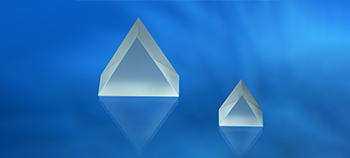

60° Prisms
Dimension Side length: 5 mm – 50 mm Height: 5 mm – 50 mm
Thickness 0.5mm -
Tolerances Planarity: up to λ/10 Wedge angle: up to 1” * *depending on size or
Please contact us for your desired processing content and quantity.

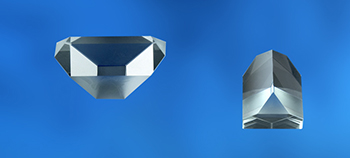

Roof Prisms
Dimension Side length: 5 mm – 50 mm Height: 5 mm – 150 mm
Thickness 0.5mm -
Tolerances Planarity: up to λ/10 Wedge angle: up to 1” * *depending on size or
Please contact us for your desired processing content and quantity.

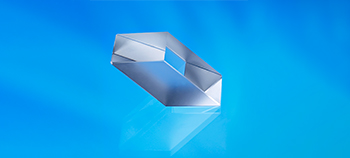

Rhomboid Prisms
Dimension Side length: 5 mm – 50 mm Height: 5 mm – 50 mm
Thickness 0.5mm -
Tolerances Planarity: up to λ/10 Wedge angle: up to 1” * *depending on size or
Please contact us for your desired processing content and quantity.

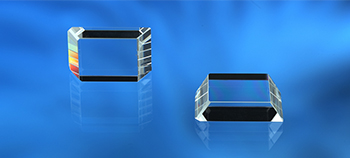

Dove Prisms
Dimension Side length: 5 mm – 50 mm Height: 5 mm – 50 mm
Thickness 0.5mm -
Tolerances Planarity: up to λ/10 Wedge angle: up to 1” * *depending on size or
Please contact us for your desired processing content and quantity.

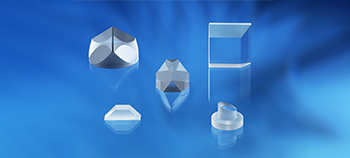

Special Prisms
Dimension Side length: 5 mm – 50 mm Height: 5 mm – 50 mm
Thickness 0.5mm -
Tolerances Planarity: up to λ/10 Wedge angle: up to 1” * *depending on size or
Please contact us for your desired processing content and quantity.
